WAVE FRONT BRAKE DISC FOR HARLEY-DAVIDSON DYNA LOW RIDER 103 FXDL (2014–2016) WITH ABE – PROBRAKE
WAVE FRONT BRAKE DISC FOR HARLEY-DAVIDSON DYNA LOW RIDER 103 FXDL (2014–2016) WITH ABE – PROBRAKE
Available
Your legal guarantee rights
Couldn't load pickup availability
⚠️ Note on Approval & Installation: Some of the offered parts requiring approval or being TÜV-relevant do not have TÜV, ABE, EG, or part certificate approval. If no such approval is stated in the respective product description, these parts are not approved for public road traffic and may have to be registered via individual acceptance or are exclusively intended for racing or show purposes. Depending on the vehicle and product, adjustments or additional installation work may also be required. Not all items are plug & play.
🔔 Availability: Stock levels may vary in individual cases. Items that are not available will, of course, be refunded.
Manufacturer's specifications +
Manufacturer Information
probrake GmbH
Fritz-Schieler-Str. 3
79331 Teningen
Germany
Tel.: 07641 - 95 70 444
Email: info@probrake.de
Split

Manufacturer - PROBRAKE
Manufacturer Information
probrake GmbH
Fritz-Schieler-Str. 3
79331 Teningen
Germany
Tel.: 07641 - 95 70 444
Email: info@probrake.de

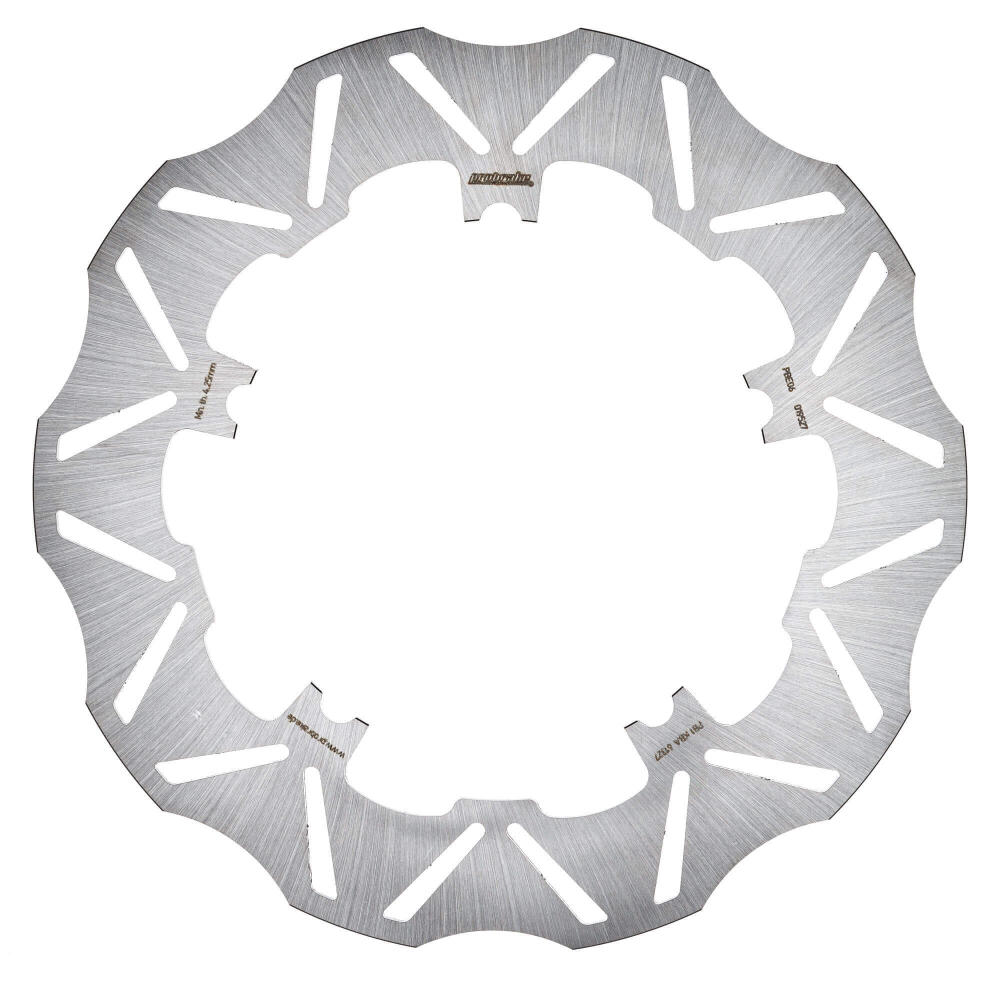

WAVE BRAKE DISC FRONT – HARLEY-DAVIDSON DYNA LOW RIDER 103 FXDL (2014–2016) – WITH ABE
The vehicle-specific probrake WAVE brake disc from the ROCK product series combines precise responsiveness with a WAVE contour designed for heat dissipation and pad cleaning. The version has been cross-checked with the official probrake vehicle assignment.
DETAILS
Product series: ROCK
Model: PBE06
Position: front
Design: one-piece
Compatible with all common brake pads
COMPATIBILITY
Harley-Davidson Dyna Low Rider 103 FXDL (2014–2016).
Fitment code: FD2
Before purchase, cross-check the model code, year of manufacture, installation position, and braking system with the vehicle.
Important: According to probrake, PBE06 is a one-piece disc without a floater; the previous specification "semi-floating" was incorrect for this model.
TECHNICAL DATA
Outer diameter: 300 mm / 11.8 inches
Inner diameter: 172.5 mm
Floater: none
Bolt circle: not specified
Mounting holes: 5
Offset: 0 mm
Thickness: 5 mm
Material: stainless steel alloy
Weight: 1.17 kg
VARIANTS
Variant: brake disc without brake pad
SCOPE OF DELIVERY
1 × probrake WAVE brake disc PBE06 (front)
Installation instructions
CERTIFICATION
ABE (General Operating Permit) according to probrake. The notes, vehicle assignment, and any requirements in the enclosed documents are authoritative.
Installation must be carried out by a professional workshop or a qualified person. We accept no liability for damage or malfunctions caused by incorrect or improper installation. Your statutory rights in the event of a product defect remain unaffected.
WAVE BRAKE DISC FRONT – HARLEY-DAVIDSON DYNA LOW RIDER 103 FXDL (2014–2016) – WITH ABE
The vehicle-specific probrake WAVE brake disc from the ROCK product series combines precise responsiveness with a WAVE contour designed for heat dissipation and pad cleaning. The version has been cross-checked with the official probrake vehicle assignment.
DETAILS
Product series: ROCK
Model: PBE06
Position: front
Design: one-piece
Compatible with all common brake pads
COMPATIBILITY
Harley-Davidson Dyna Low Rider 103 FXDL (2014–2016).
Fitment code: FD2
Before purchase, cross-check the model code, year of manufacture, installation position, and braking system with the vehicle.
Important: According to probrake, PBE06 is a one-piece disc without a floater; the previous specification "semi-floating" was incorrect for this model.
TECHNICAL DATA
Outer diameter: 300 mm / 11.8 inches
Inner diameter: 172.5 mm
Floater: none
Bolt circle: not specified
Mounting holes: 5
Offset: 0 mm
Thickness: 5 mm
Material: stainless steel alloy
Weight: 1.17 kg
VARIANTS
Variant: brake disc without brake pad
SCOPE OF DELIVERY
1 × probrake WAVE brake disc PBE06 (front)
Installation instructions
CERTIFICATION
ABE (General Operating Permit) according to probrake. The notes, vehicle assignment, and any requirements in the enclosed documents are authoritative.
Installation must be carried out by a professional workshop or a qualified person. We accept no liability for damage or malfunctions caused by incorrect or improper installation. Your statutory rights in the event of a product defect remain unaffected.
