HANDLEBAR SANTEE APE HANGER 17" FOR VARIOUS HARLEY MODELS
HANDLEBAR SANTEE APE HANGER 17" FOR VARIOUS HARLEY MODELS
⏱️ Delivery note: Delivery time is typically approximately 5–8 business days, but in individual cases, it can take up to 12 business days. Should there be any further delays, we will notify you immediately.
🔧 Important: If unsure, please contact us before purchasing, stating the model and year of manufacture. ✅ Installation by qualified personnel only. ℹ️ Returns are possible, subject to a possible reduction in value. ❌ Custom-made items (e.g., handlebars) are not returnable. 👉 Observe the return policy.
Couldn't load pickup availability
🔔 Availability information: Our stocks are updated regularly, but in exceptional cases, short-term delivery bottlenecks may occur. Should an item be unavailable, the purchase price will be automatically and fully refunded . You don't have to worry about anything.

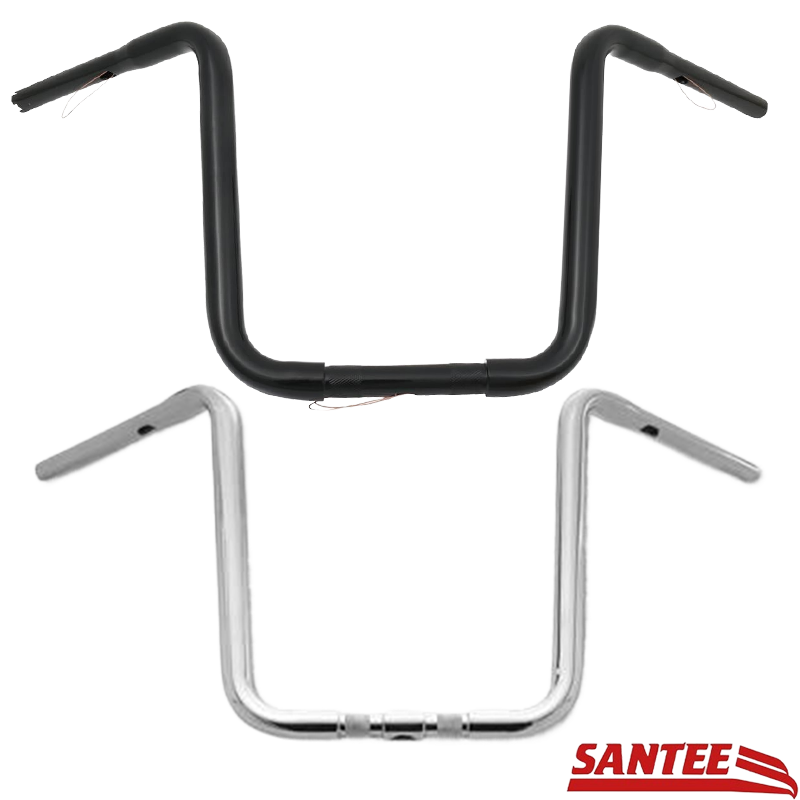

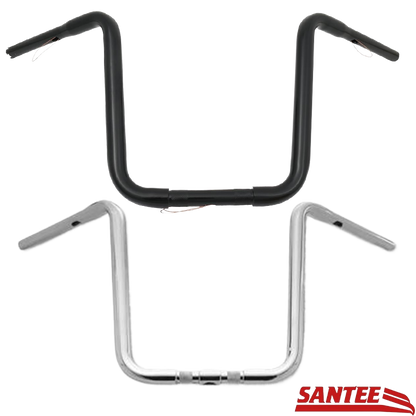

SANTEE APE HANGER 17" – 1 1/4" HANDLEBAR WITH TÜV – BLACK OR CHROME – 870 mm WIDTH
⚠️ IMPORTANT NOTE BEFORE PURCHASE
📄 The handlebar comes with a TÜV parts certificate according to §19 Paragraph 3 and is suitable for all Harley-Davidson models with E-Gas (throttle-by-wire). Not suitable for models with OEM heated grips.
The 17" Santee Ape Hanger combines classic chopper looks with modern technology: a recessed clamp area, reduced handlebar ends for standard handlebar fittings, 3-hole internal cable routing, and E-throttle compatibility – clean, functional, and solid in appearance.
Compatibility:
- ✅ Softail (1984–2023)
- ✅ Dyna (1991–2017)
- ✅ Sportster (2000–2020)
- ✅ Touring (until 2023, including Road King, Road Glide, Street Glide – see appraisal)
- ❌ Not for models with heated grips
- ❌ Not for certain special models (see report for details)

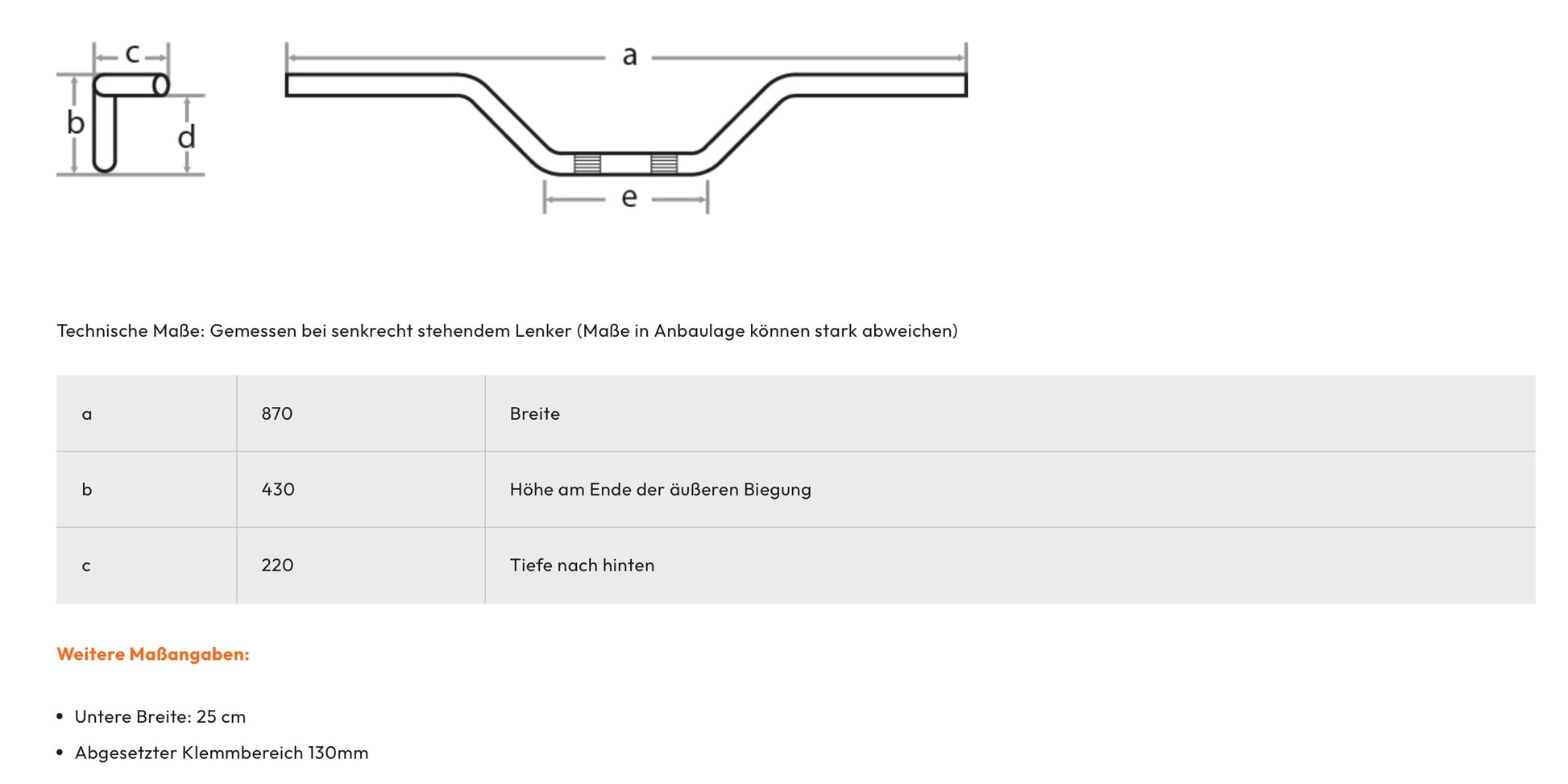

Technical details:
- Width: 870 mm
- Height: 430 mm
- Pullback/Depth: 220 mm

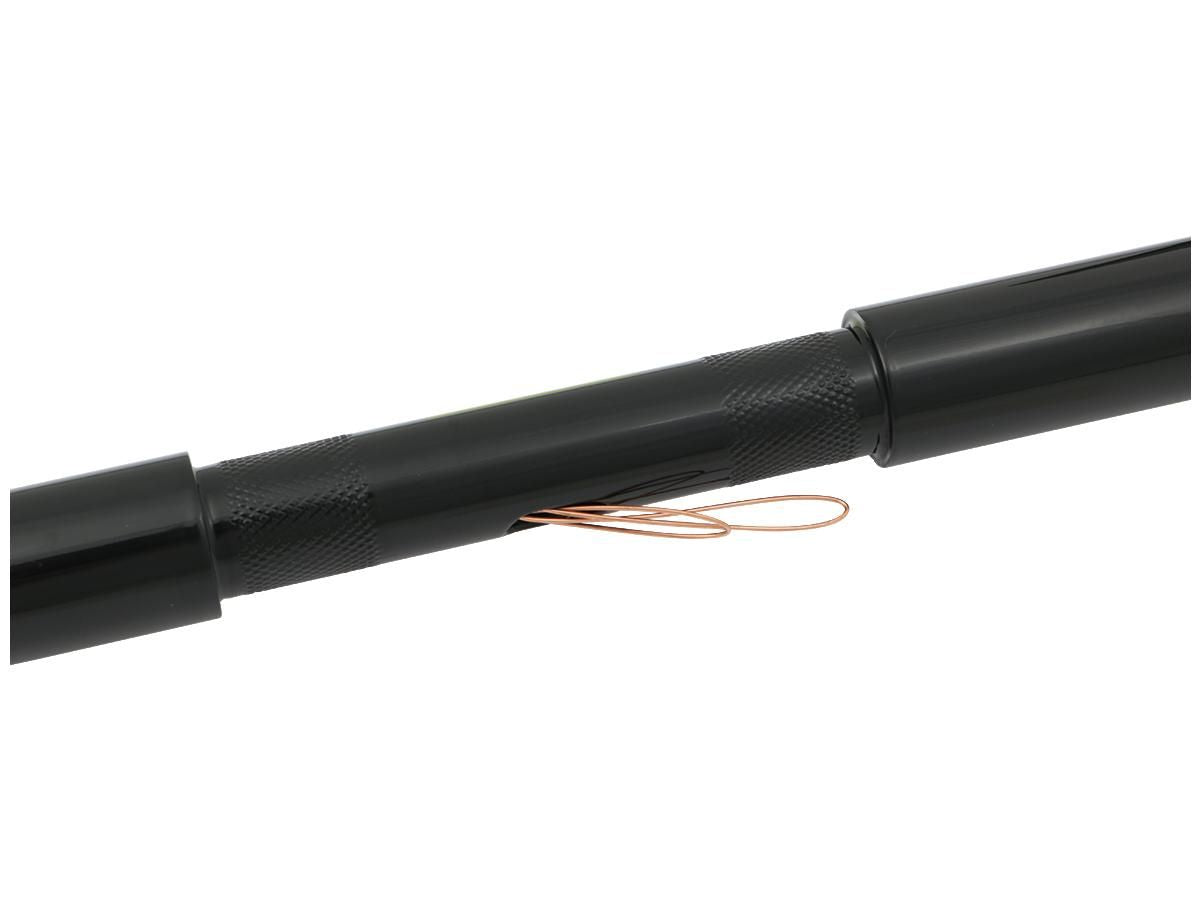

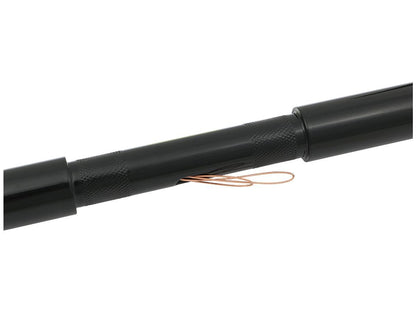

- Clamping range: 1" (25.4 mm), offset, 130 mm wide

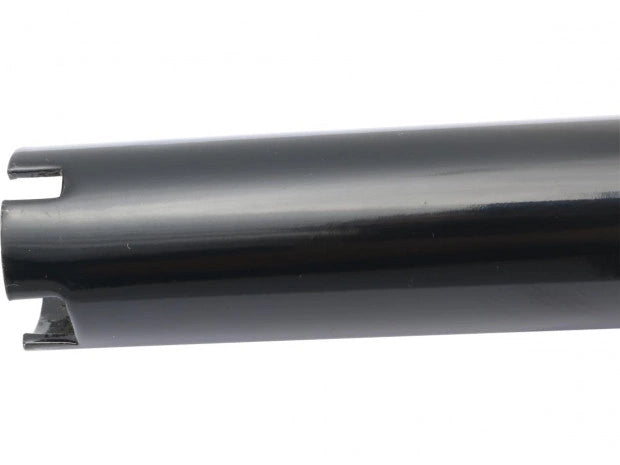

- Handle ends: 1" (25.4 mm), stepped
- Outside pipe diameter: 1 1/4" (31.75 mm)
- Bottom width: 250 mm
- With E-Gas notch (Throttle-by-Wire)

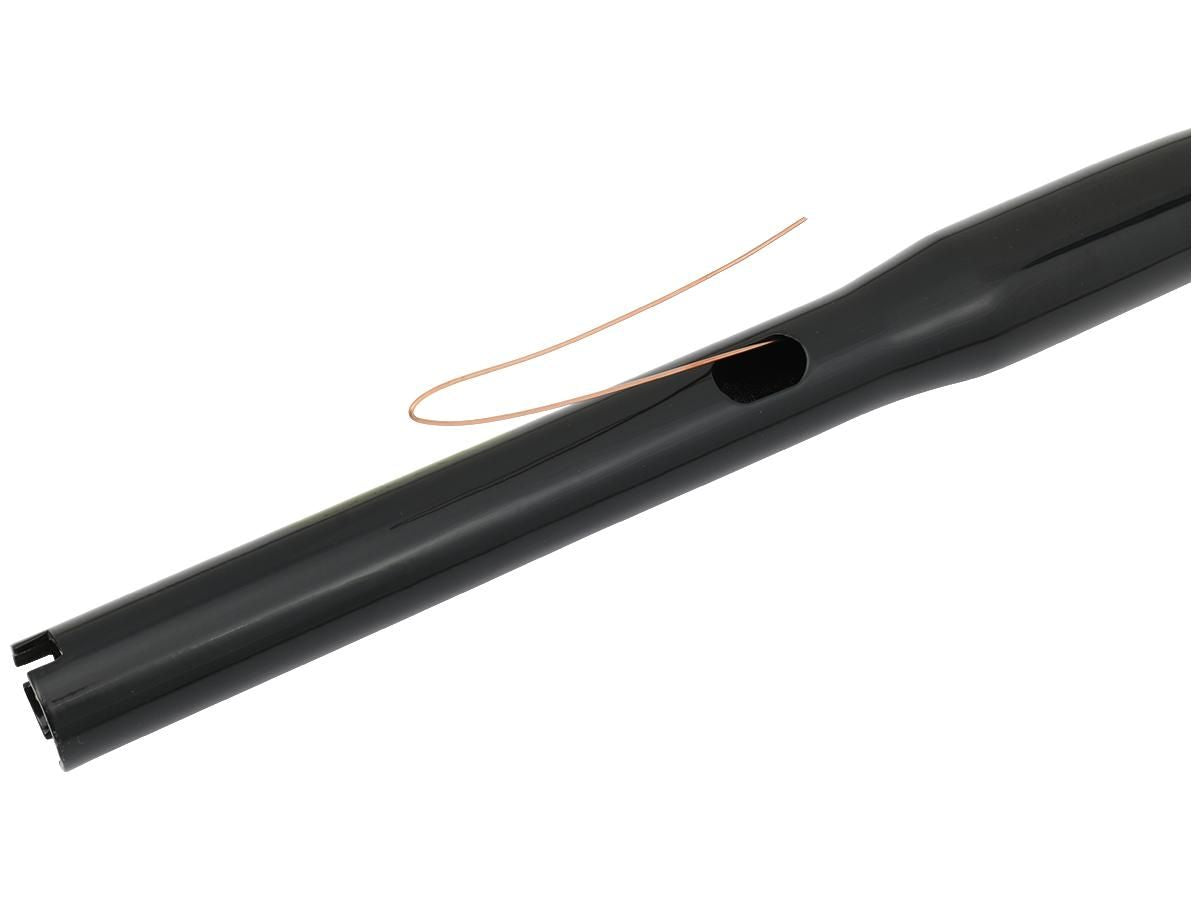

- 3-hole internal cable guide including pull wire
- High-quality coating: black or chrome
- Made in USA
📦 Note on ordering:
⚠️ Special order – non-returnable
